Minolta's Flash Units

Unlike many camera makers, Minolta made a lot of flash units over the years.  Most will fit, or at least work, with most cameras, but many were designed with specific cameras in mind.  For example the Duo Fit S is small and not too powerful because it was designed for the 16mm line of cameras.  Electronic flash units ending in X were designed for the XD and XG (and later) cameras.  While they will work on older cameras, not all of their features will be available.  Electronic flash units ending in PX were designed to provide TTL exposures with cameras such as the X-700 and X-570.  While they will work on older cameras, not all of their features will be available.

• Flash Bulb Units

  Universal Flash Gun -- accepts various types of bulbs

  Flash Gun Deluxe -- accepts various types of bulbs

  Flash Gun Deluxe II -- The folding reflector accepts various types of bulbs and swivels to any of six click-stop positions. Uses a 15v (504) battery and a 300 MFD capacitor.

  Flash Gun Deluxe III -- accepts various types of bulbs. Uses a 15v (504) battery and a 300 MFD capacitor.

  Duo Fit S -- a tiny unit designed for the 16mm cameras

  Baby BC -- A small folding unit designed for the 16mm cameras

  MG Flashgun -- uses two E90 batteries and AG-1 bulbs and only attaches to the MG camera.

  QT Flashgun -- uses one 504 battery and AG-1 bulbs and only attaches to the QT camera.

  MG-S Flashgun -- uses one 504 battery and AG-1 bulbs and only attaches to the MG-s camera.

  MG-S Cube-Gun -- uses flash cubes and only attaches to the MG-s camera.


• Electronic Flash Units

  Minolta's electronic flash units were mostly called "Electroflashs".

  Electroflash -- this was the original.  It is a manual only unit which can take AC power or batteries -- four AA.  It is also versatile because it has a built-in PC cord, and can be set vertically or horizontally.  Its rotating calculator handles film speeds from 25-800, and f-stops from f1.4-22.  It has a cold shoe, and a GN of 56 in feet with ISO 100 speed film.

  Electroflash 2 -- a compact, manual unit using 4 AA batteries and providing a GN of 45 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Electroflash 3 -- a compact, manual unit using 2 AA batteries and providing a GN of 45 in feet with ISO 100 speed film. It is a hot shoe only unit, and designed for the 200 series of Autopaks, but usable on any hot shoe camera.

  Electroflash P -- a compact, manual unit using 2 AA batteries and providing a GN of 45 in feet with ISO 100 speed film. It is a hot shoe only unit, and designed for the 200 series of Autopaks, but usable on any hot shoe camera.

  Electroflash S -- a compact, manual unit using 4 AA batteries and providing a GN of 56 in feet with ISO 100 speed film. It has a hot shoe and a PC connection. It has a ready light, test button and calculator. It handles film speeds from 25 to 800. The flash is wide enough to cover a 35mm wide-angle lens.

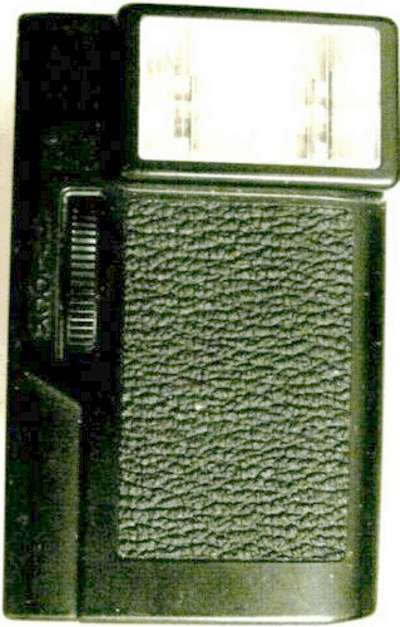

  Electroflash C -- a compact, manual unit using 2 AA batteries.  It was designed for the Minolta AF-C auto-focusing camera (an unusual Minolta AF camera that lacked a flash) -- the contacts are suitable ONLY for the AF-C camera.

  Electroflash CP -- It's a compact "P" using 2 AA batteries, but with a hot shoe and PC socket.  GN of 50 in feet with ISO 100 speed film.  Its table handles film speeds from 25 to 400.

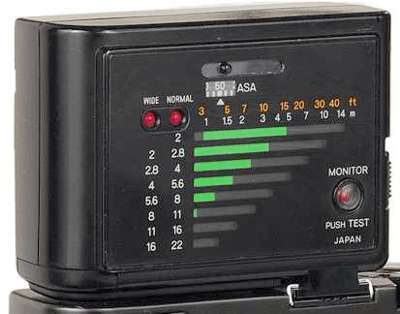

  Electroflash CLE -- Designed to match perfectly with the CLE camera -- mechanically, electronically, and aesthetically.  While it has a hot shoe and will work with any hot shoe camera, it is designed for the TTL auto flash use with the CLE camera.  It has a rather unique scale on the back that displays the distance ranges for all the f-stops of the CLE lenses.

  Electroflash 14 -- a compact, manual unit using 2 AA batteries

  Electroflash 20 -- a compact (1" x 2.5" x 2.5"), lightweight (3 oz.), manual unit using 2 AA batteries and providing a quite substantial GN of 66 in feet with ISO 100 speed film.  It is a hot shoe only unit, but it has a rotating computer on the back (ISO 25 to 400) as well as a ready light/test button.  It's perfect for subminis (or small 35mms) that have a hot shoe, such as the MG-s.  With ISO 400 film, at f2.0 you can correctly expose at 60 feet!

  Auto Electroflash 22 -- This is a very compact unit that features both manual and automatic exposure. It is 1.4 inches wide, 2.75 inches deep and 3.5 inches tall, weighting in at only 5 ounces. As a result, it is not that powerful, but it is a perfect match for smaller cameras. It has a GN of 74 in feet with ISO 100 speed film. It sports one auto-exposure mode with a working range up to 13 feet at f5.6 with ISO 100 speed film. It uses four non-rechargeable AA batteries, and that is the only possible power source. The flash is wide enough to cover a 35mm wide-angle lens. It has a hot shoe, but comes with a detachable PC cord. It has a ready light, test button and calculator. It handles film speeds from 25 to 800.

  Auto Electroflash 25 -- a compact unit having manual and auto-exposure modes, using 4 AA batteries and providing a GN of 82 in feet with ISO 100 speed film. It has a hot shoe and a PC connection. Often sold in a kit with the Pocket Autopak 200, Pocket Autopak 230, Pocket Autopak 250, Pocket Autopak 270, and other small cameras.

  Auto Electroflash 28 -- This is the older brother of the Electroflash 25 and the younger brother of the Electroflash 128. It is a manual and auto-exposure unit using 4 AA batteries or AC power. It providing a GN of 92 in feet with ISO 100 speed film. It sports one auto-exposure mode with a working range up to 16 feet at f5.6 with ISO 100 speed film. It has a hot shoe and a PC connection for a detachable PC cord.  The unit head is titlable up to 90 degrees for bounce-flash use. The flash is wide enough to cover a 35mm wide-angle lens, but an accessory wide-angle panel was available for use down to a 28mm lens. It has a ready light, test button and calculator. It handles film speeds from 25 to 400.

  Auto Electroflash 30FX -- A small, light flash offering manual and auto-exposure modes, and using 2 AA batteries.  It provides a GN of 60 in feet with ISO 100 speed film. It is a hot shoe only flash.  It has two auto modes -- one for ISO 100 and one for ISO 400.  Accepts a wide-angle panel for use with 28mm lenses.

  Auto Electroflash 32 -- a manual and auto-exposure unit using 4 AA batteries and providing a GN of 104 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Auto Electroflash Macro 80PX -- A ring light for close-up and macro work.  Designed to provide TTL exposures with cameras such as the X-700 and X-570, the unit will additionally set the camera to the synch speed . Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras causes an LED to blink in the viewfinder when the flash is "ready". A manual and auto-exposure unit using 4 AA batteries and providing a GN of 26 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Auto Electroflash 118X -- Designed for the XD and XG (and later) cameras, the unit will automatically set these cameras to the synch speed. Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras the 118X causes an LED to blink in the viewfinder when the flash is "ready". It offers and manual exposure mode and two, sort of, auto-exposure modes. This is a very compact unit measuring only 2 inches by 2.5 inches by 3.5 inches, and weighting only 4.5 ounces. As a result, it is not that powerful, but it is a perfect match for occasional use. It uses any type of a pair of AA batteries and has a GN of 60 in feet with ISO 100 speed film. It sports one auto-exposure mode with a working range up to 15 feet at f4.0 with ISO 100 speed film. It has a second scale, with a greater distance, for use with ISO 400 film.  It is a hot shoe only unit, so it is not usable on cold shoe cameras without a PC-to-hot shoe adapter. The flash is wide enough to cover a 35mm wide-angle lens, but an accessory wide-angle panel was available for use down to a 28mm lens. It has a ready light, test button and calculator. It handles film speeds from 25 to 400, but only ISO 100 and 400 in auto mode. Even though it is designed for cameras that accept autowinders, because it is a non-thyristor flash, it cannot keep up with a camera when it is using an autowinder.

  Auto Electroflash 128 -- a manual and auto-exposure unit using 4 AA batteries and providing a GN of 92 in feet with ISO 100 speed film. It has a hot shoe and a PC connection. It is a very powerful unit with a tiltable head and many other features.

  Auto Electroflash 132X -- Designed for the XD and XG (and later) cameras, the unit will automatically set the camera to the synch speed . Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras causes an LED to blink in the viewfinder when the flash is "ready". A manual and auto-exposure unit using 4 AA batteries and providing a GN of 105 in feet with ISO 100 speed film. It has a hot shoe and a PC connection. It sports two auto-exposure modes, and can be used as a hot shoe unit or with a PC cord. The flash is wide enough to cover a 35mm wide-angle lens, but an accessory wide-angle panel was available for use down to a 24mm lens. It has a ready light, test button and has a tiltable head for bounce flash.

  Auto Electroflash 132PX -- An updated version of the Electroflash 132X, it is designed to provide TTL exposures with cameras such as the X-700 and X-570, the unit will additionally set the camera to the synch speed. On the XD, XG, and later cameras causes an LED to blink in the viewfinder when the flash is "ready". What's different about this flash is that it is designed for TTL flash use only. It cannot be used in non-TTL auto-exposure mode and it cannot be used in manual exposure mode. It takes 4 AA batteries and has a GN of 105 in feet with ISO 100 speed film. It has a hot shoe only connection. It sports one auto-exposure mode with a working range up to 23 feet with ISO 100 speed film. The flash is wide enough to cover a 35mm wide-angle lens, but an accessory wide-angle panel was available. It has a ready light, test button and has a tiltable head for bounce flash.

  Auto Electroflash 200X -- Designed for the XD and XG (and later) cameras, the unit created a new generation of flash units for Minolta cameras. The 200x will automatically set the camera to the synch speed when it is attached to the top of the camera. No matter what the speed is manually set at, the camera sets the speed to 1/60. Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras the 200X causes an LED to blink in the viewfinder when the flash is "ready".  That's nice. The 200X is a manual and auto-exposure unit using 4 AA batteries and providing a GN of 66 in feet with ISO 100 speed film. It is a hot shoe only unit -- NO PC connection -- but it has a twist. It has two auto modes (with working ranges up to 11 feet at f5.6 or 22 at f2.8 with ISO 100 speed film), but it also has two manual modes! The main manual mode has a GN of 66, but the "Autowinder" manual mode has a GN of 24. For you, it means that you just open up the lens by three f-stops and you can use the autowinder in manual mode. It's nice, but chances are, if you are using the autowinder, you are probably using auto-exposure mode on the flash. It is a nice compact, powerful unit with many features and options. Ready light, test button, calculator with film speeds from 25 to 400, meter and feet readouts. The flash is wide enough to cover a 35mm wide-angle lens, but an accessory wide-angle panel was available for use down to a 28mm lens. It takes 4 AA batteries.

  Auto Electroflash 220X -- Designed like the Electroflash 200X, it is for the XD and XG (and later) cameras. It's a little narrower and a little taller, and takes differnt acccesories, but it generally looks the same. The 220x will automatically set the camera to the synch speed when it is attached to the top of the camera. No matter what the speed is manually set at, the camera sets the speed to 1/60. Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras the 220X causes an LED to blink in the viewfinder when the flash is "ready".  That's nice. The 220X is a auto-exposure only unit using 4 AA batteries, but it has two f-stop settings. It is a hot shoe only unit -- NO PC connection -- but it has a twist. It has a flip-head. For you, it means that you can trun the flash up to 90 degrees and get bounced light. It is a nice compact, powerful unit with many features and options. Ready light, test button, with film speeds from 64 to 400. It's main drawback is that it only works in auto mode. It takes 4 AA batteries.

  Auto Electroflash 280 -- a manual and auto-exposure unit using 4 AA batteries and providing a GN of 92 in feet with ISO 100 speed film. It has a hot shoe and a PC connection. A very powerful unit with many features such as

  Auto Electroflash 280PX -- An updated version of the Electroflash 280X, it is designed to provide TTL exposures with cameras such as the X-700 and X-570, the unit will additionally set the camera to the synch speed . Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras causes an LED to blink in the viewfinder when the flash is "ready". A manual and auto-exposure unit using 4 AA batteries and providing a GN of 92 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Auto Electroflash 320 -- a manual and auto-exposure unit using 4 AA batteries and providing a GN of 105 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Auto Electroflash 320X -- An updated version of the Electroflash 320, it is designed for the XD and XG (and later) cameras, the unit will automatically set the camera to the synch speed . Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras causes an LED to blink in the viewfinder when the flash is "ready". A manual and auto-exposure unit using 4 AA batteries and providing a GN of 105 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Auto Electroflash 360PX -- An updated version of the Electroflash 320X, it is designed to provide TTL exposures with cameras such as the X-700 and X-570, the unit will additionally set the camera to the synch speed . Some find this a neat convenience feature. Others have problems because slower shutters cannot be selected. In fact, they can be selected, but it takes a bit of work because you need to place tape on the secondary hot shoe contact. On the XD, XG, and later cameras causes an LED to blink in the viewfinder when the flash is "ready". A manual and auto-exposure unit using 4 AA batteries and providing a GN of 118 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Auto Electroflash 400 -- a manual and auto-exposure unit using 6 AA batteries and providing a GN of 148 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Auto Electroflash 450 -- a manual and auto-exposure unit using 6 AA batteries and providing a GN of 148 in feet with ISO 100 speed film. It has a hot shoe and a PC connection.

  Pocket Flash 25B -- this is a tiny flash that attachs to any of the series 200 Autopak 110 cameras. It uses two AA batteries. It is not useable on any other cameras -- and ONLY on the 200 series, such as the 200, 250, and 270 Autopaks. See the 110 page for more information.

  Pocket Flash 100 -- designed for the 460T Autopak 110 camera. It uses one AA battery. See the 110 page for more information.

  Pocket Flash 110 -- designed for the 470 Autopak 110 camera. It uses one AA battery. See the 110 page for more information.
